PUMP TESTING FOR COMBUSTION ENGINES

To generate high pressure at the injector inlet, our customers develop piston pumps with control strategies defined by a pump inlet actuator and one or 2 pump outlet actuators.

Together they optimize the pressure to be generated and the power absorbed by the pump. To validate this product, EFS has developed the HPC (High Pressure Controller) rack, which controls the customer’s actuators according to different strategies and qualifies the pump’s operation.

This equipment, combined with our pump bench, enables us to fully qualify the operation of the pump in terms of speed, flow, pressure and torque, in order to fully map the pump produced. This bench can be used in RD as well as in production. The pump can be clamped manually or automatically.

DO YOU HAVE A PROJECT ? CONTACT US!

QUALIFICATION OF YOUR COMMON RAIL PUMP

Qualification of your pumps in RD and production

To meet the needs of high-pressure pump manufacturers in both RD and production, EFS has developed and manufactured a test bench for measuring the characteristics and durability of pumps up to 2700 bar.

The flow rate can be regulated up to 8 l/min. The speed can be adjusted from 0 to 8000 rpm if required and the torque can be varied from 0 to 300 Nm if required.

Specify your needs and we will define your equipment together.

Dedicated test benches for characterizing your pumps

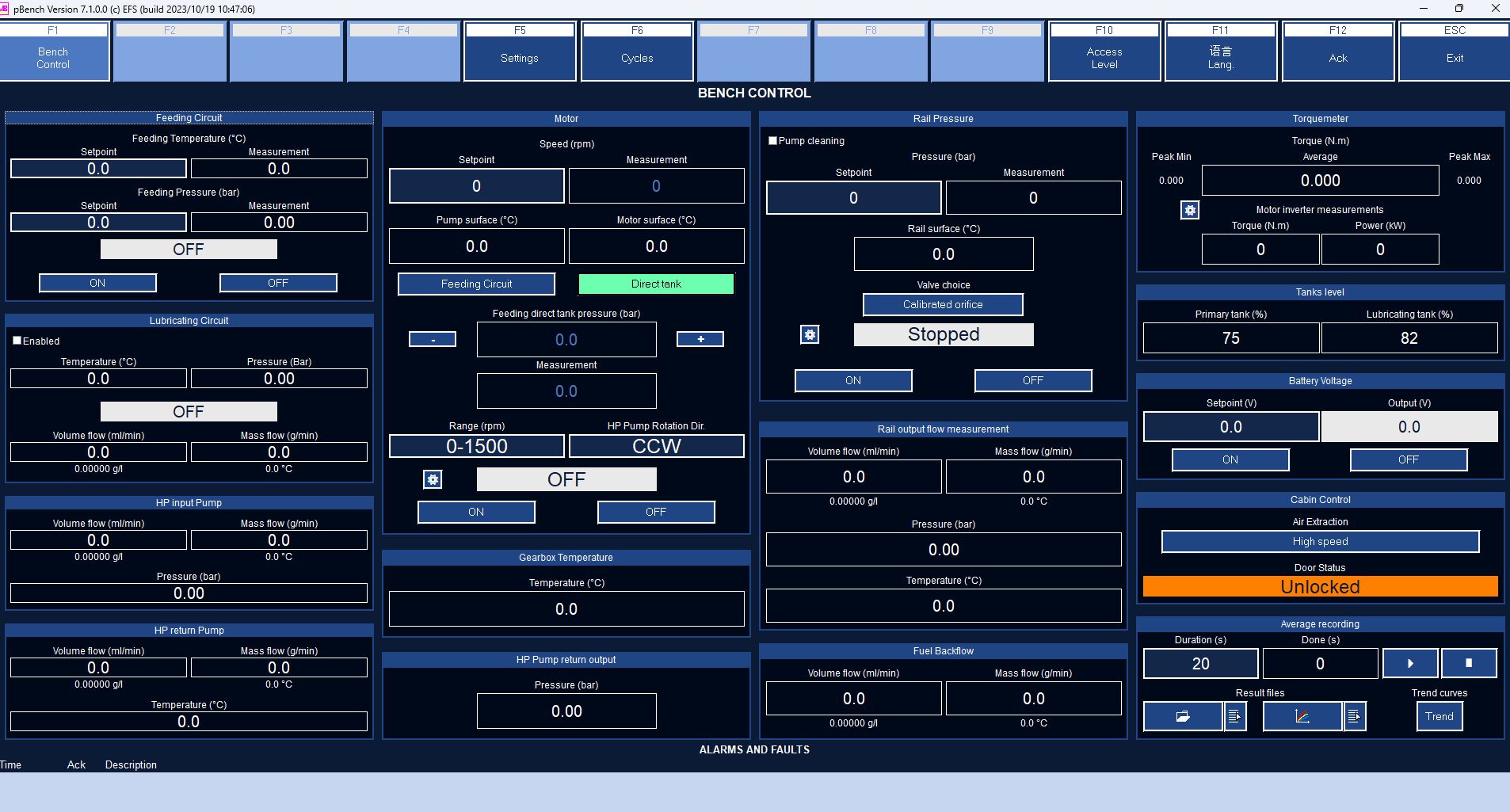

The EFS test bench can be used to test any type of common rail pump. It is equipped with high-performance Pbench supervision software tailored to your needs (research or production), capable of carrying out automatic measurement cycles and automatically recording and transmitting measurement results.

It can carry out a complete analysis of the pump, from measuring pump capacity using Coriolis flowmeters, comparing measurements and mapping pumps (MAP) using the Edit cycle software. Parameters such as pump speed, pressure, torque and flow rate are measured in this way.

Pump test in our premises on our dedicated bench

Flow characterization of the pump in function of the speed and the pressure. Manual assembly of your pump in our bench with adaptation pieces for the coupling. We are at your disposal for all future needs in this domain.
